| Model |
Function |
| 59CS |
DC signal transmitter |
| 59CP |
Current loop supply |
| 59CH |
Current loop supply(Compatible with hart protocol) |
| 59CXR |
RTD transmitter |
| 59CXC |
TC transmitter |
| 59CU |
Universal type |
| 59CR |
RTD transmitter ,PC Programmable |
| 59CC |
TC transmitter ,PC Programmable |
| 59CT |
Potentiometer transmitter |
| 59CF |
Pulse signal transmitter |
| 59CI |
On/off signal transmitter |
| 59C2I |
On/off signal transmitter, Dual-channel |
| 59CNS |
DC signal transmitter , loop powered |
| 59CNP |
2-wire transmitters, loop powered |
| 59CNR |
RTD signal isolators, loop powered |
| 59CNC |
TC signal isolators,loop powered |
|
|
| Products |

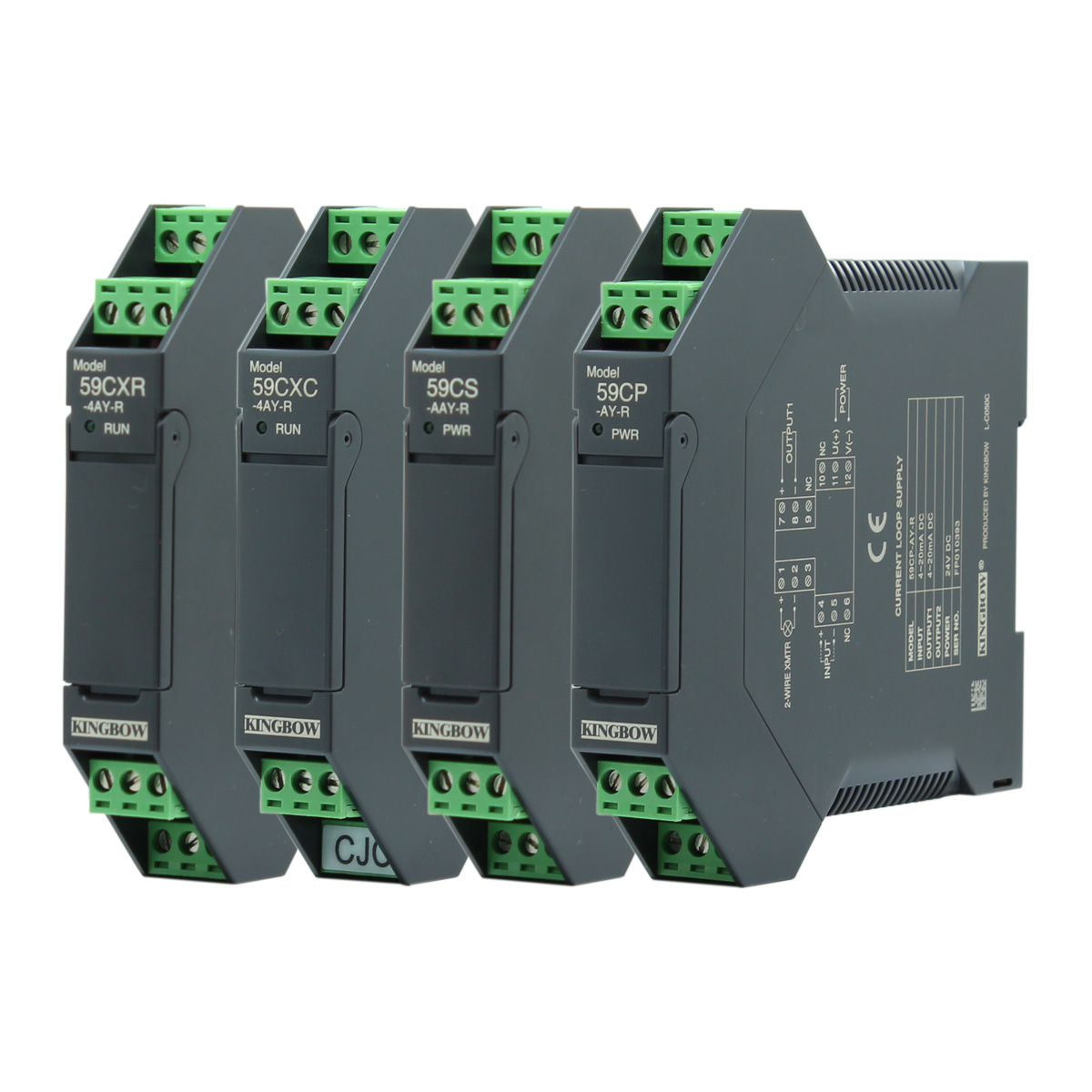

59C Series |
Input |
DC Voltage:
-300 +300VDC
DC Current:
0-50mA
(Specify available)
RTD:
Pt100,Pt50,Pt10,Ni508.4,Cu50,Cu100
(Specify available)
T/C:
(PR),K,E,J,T,B,R,S,N
(Specify available)
Potentiometer:
Up to 10k次 |
| Input resistance |
Current: Max.1000次
(Specify available)
Voltage: Min.10k次
T/C:30 K次 |
| Output |
DC:
-10- +10VDC
(Specify available)
0 -20mA
(Specify available) |
| Load resistance |
DC Current: Max.550次
DC Voltage: Min.500次 |
| Power supply |
24VDC,10-36VDC,85-264VAC |
| Construction |
Terminal block |
| Housing material |
Flame-resistant resin |
| Dielectric strength |
2000VAC@1minute |
| Accuracy |
㊣ 0.10%/F.S See detail spec. data sheet |
| Operating data |
Temperature:-20 +55
Humidity:5- 99%RH |
| Display |
- |
| Adjustment |
Front panel adjustments
㊣
2% for Zero and Span |
| Mechanical connection |
Pluggable terminal block |
| Approvals |
CE |
| Mounting |
35mm DIN rail |
| Dimensions |
W18
℅
H106
℅
D111mm |
| Weight |
120g |
|
|
